Go Back   DieselRam.com > Diesel Ram Technical Topics > Technical Info: 2nd Gen 24 VALVE DRIVETRAIN
Technical Info: 2nd Gen 24 VALVE DRIVETRAIN Technical discussion of second generation (1998 - 2002) 24-valve engine and drivetrain questions, solutions and upgrades.
Reply

Thread Tools Search this Thread
  #1
Old 02-02-2017
BLRMKR27's Avatar
BLRMKR27 BLRMKR27 is offline
Senior Member

Join Date: Nov 2006
Location: Blackwell,MO
Posts: 634
Default 47RE 1st-2nd

At 327K my truck decides it wants shift into 2nd at redline with my foot almost completely off the go pedal! I'm thinking the gov pres sensor and solenoid again so I order the crap to do it in a kit with even a lock-up solenoid and wire harness, and tranny speed sensor with filter. Happy happy joy joy! While into it, I just checked for play in the band levers. Holy crap! I then didn't see how it could shift at all with an inch of slop there. Compared to 727s I've screwed with before it seemed WAY off. So I raised the line pressure about 1.5 lbs while I was at it and adjusted the rear band. Didn't think to count the turns to get that torqued but it was a lot. After adjusting the play at the lever felt much better, but still looser than a 727. All back together and test drive, still 1st-2nd shift the same.
Next day - I decide to adjust front band. I'm already sore from working on my back. Whoever put that locknut on there is crazy! supposed to be 35ftlbs not 95. Adjustment screw goes in almost out of the locknut before hitting 72inlbs. Backed out 1-7/8 turns per FSM. Pulled out rearend speed sensor to check it out for metal particles. Not present!
Truck shifts almost perfect. (for what it is) Wondering how long!
__________________
'01, 3500, DRW, 4x4, QC, leather, 345,000mi, BHAF ,3.54, Dana80/60, 47RE auto, MWFI VP44 at 112k, FASS Titanium 150, Banks Power Elbow,
4"Monster exhaust, Ranch Hand Legend frt bumper, silencer ring MIA,Cooper AT3s, Timbo's APPS, Spohn Trackbar upgrade, HellBent Steel DSS, 50hp Maxtorq Injectors.
Mopar 52122362AH Steering upgrade
30' Damon Escaper 5'er 12,000#

Last edited by BLRMKR27; 02-02-2017 at 04:13 PM.. Reason: Numbers mistake. I would've heard about it!
Reply With Quote
  #2
Old 02-02-2017
smokediver's Avatar
smokediver smokediver is online now
Senior Member

Join Date: May 2006
Location: Mississippi
Posts: 3,701
Default

Your 01 is a 47RE??
I thought that's whats in my 96 & my 99 is pos'd to be a 48RH...?

Ok...how do i turn up the line pressure. ..?
__________________
'07, megacab, 2WD, Dually, 6.7, auto,
Deleted, h&s programmer, jasper turbo, ETE tranny, 400k mi !!
'09, quad cab, Laramie, 2WD, Dually, 6.7, auto. 255k mi
Stock, until...
My Other Truck is a Fire Engine!!

Last edited by smokediver; 02-02-2017 at 09:52 PM..
Reply With Quote
  #3
Old 02-03-2017
BLRMKR27's Avatar
BLRMKR27 BLRMKR27 is offline
Senior Member

Join Date: Nov 2006
Location: Blackwell,MO
Posts: 634
Default

Says 47RE on window sticker. Look at page 819 in the FSM for instruction to adjust line pressure. I only backed the screw out one turn...I'm a chicken!
__________________
'01, 3500, DRW, 4x4, QC, leather, 345,000mi, BHAF ,3.54, Dana80/60, 47RE auto, MWFI VP44 at 112k, FASS Titanium 150, Banks Power Elbow,
4"Monster exhaust, Ranch Hand Legend frt bumper, silencer ring MIA,Cooper AT3s, Timbo's APPS, Spohn Trackbar upgrade, HellBent Steel DSS, 50hp Maxtorq Injectors.
Mopar 52122362AH Steering upgrade
30' Damon Escaper 5'er 12,000#
Reply With Quote
  #4
Old 03-31-2017
BLRMKR27's Avatar
BLRMKR27 BLRMKR27 is offline
Senior Member

Join Date: Nov 2006
Location: Blackwell,MO
Posts: 634
Default

I was expecting this! 2nd gear shift is basically not there. Going to have to be rebuilt. Me babying the tranny is probably the only reason it lasted 345,000 miles.
Don't want stock slushy torque converter in it. Seems to need lower stall speed. I wish I could get it to MAXTORQ for rebuild. I've never abused it except for a few times pulling stumps out of yard and pulling 5th wheel. Never had any issues with it other than governor sensor/shift solenoid.
Not going for high HP rebuild but would like to make it tough enough to live till I die! LOL
Can anyone tell me a good TC to get? Or should I just order a complete tranny from someone? I've changed out 727s before. Is it that hard to remove a 47re from a 4wd '01?
__________________
'01, 3500, DRW, 4x4, QC, leather, 345,000mi, BHAF ,3.54, Dana80/60, 47RE auto, MWFI VP44 at 112k, FASS Titanium 150, Banks Power Elbow,
4"Monster exhaust, Ranch Hand Legend frt bumper, silencer ring MIA,Cooper AT3s, Timbo's APPS, Spohn Trackbar upgrade, HellBent Steel DSS, 50hp Maxtorq Injectors.
Mopar 52122362AH Steering upgrade
30' Damon Escaper 5'er 12,000#
Reply With Quote
  #5
Old 03-31-2017
smokediver's Avatar
smokediver smokediver is online now
Senior Member

Join Date: May 2006
Location: Mississippi
Posts: 3,701
Default

A tranny swap is a tranny swap, more or less. The transfer case does make it a little more fun.
A 47RE in a 96 isn't any worse than anything else, and not as bad as some...
Far as the TC is concerned, Good Luck. The 'tighter' ones I've bought have been disappointing to me.
My 01 Silverado has a tighter converter than either dodge I've changed.
Apparently, unless somebody knows a secret, you have to spend well over a grand for a decent TC.
__________________
'07, megacab, 2WD, Dually, 6.7, auto,
Deleted, h&s programmer, jasper turbo, ETE tranny, 400k mi !!
'09, quad cab, Laramie, 2WD, Dually, 6.7, auto. 255k mi
Stock, until...
My Other Truck is a Fire Engine!!

Last edited by smokediver; 03-31-2017 at 10:02 PM..
Reply With Quote
  #6
Old 04-01-2017
pullinforme's Avatar
pullinforme pullinforme is offline
Senior Member

Join Date: Jan 2005
Location: Abilene, Kansas
Posts: 1,678
Default

Send your wife out to Robs, Dawn and her can BS or shop while Rob works LOL
__________________
2005 SLT 2500 3.73 Automatic, reg cab, spray in liner, stull runnin boards,12 volt winch power to bed, slide out loading ramp 4ft by 8ft.Bone stock silencer now MIA 95 gph fass adjustable pump and straw kit
06 dodge 1/2 ton 2wd gasser 4.7 l auto [replacement for giving the son the ford] went to my mother 2016 1500 5.7hemi 10000 original miles

2014 Cadillac CTS 2.0 turbo
Reply With Quote
  #7
Old 04-05-2017
BLRMKR27's Avatar
BLRMKR27 BLRMKR27 is offline
Senior Member

Join Date: Nov 2006
Location: Blackwell,MO
Posts: 634
Default

My Ex would be in a casket if I sent her. Karma's a you-know-what, if you know what I mean. The cost of the trip to Maxtork's and the tranny kind of rules that option out. But I wish I could do it.
__________________
'01, 3500, DRW, 4x4, QC, leather, 345,000mi, BHAF ,3.54, Dana80/60, 47RE auto, MWFI VP44 at 112k, FASS Titanium 150, Banks Power Elbow,
4"Monster exhaust, Ranch Hand Legend frt bumper, silencer ring MIA,Cooper AT3s, Timbo's APPS, Spohn Trackbar upgrade, HellBent Steel DSS, 50hp Maxtorq Injectors.
Mopar 52122362AH Steering upgrade
30' Damon Escaper 5'er 12,000#
Reply With Quote
  #8
Old 04-06-2017
MAXTORQ's Avatar
MAXTORQ MAXTORQ is offline
Administrator

Join Date: Jan 2004
Location: GOLDEN ,COLORADO
Posts: 19,636
Send a message via Yahoo to MAXTORQ Send a message via Skype™ to MAXTORQ
Default

First off you have a 47re no such thing as a 48rh.

Putting together a good tranny will cost about 4K depending on parts used. Converter wise I use Phil at DPC converters in Georgia.

Just find a decent shop that understands these trucks. Or you can order a trans such as a suncoast or georand.
__________________


www.maxtorqdiesel.com
Reply With Quote
  #9
Old 04-17-2017
BLRMKR27's Avatar
BLRMKR27 BLRMKR27 is offline
Senior Member

Join Date: Nov 2006
Location: Blackwell,MO
Posts: 634
Default

Well, I never said it was a 48rh. Don't know where that came from.

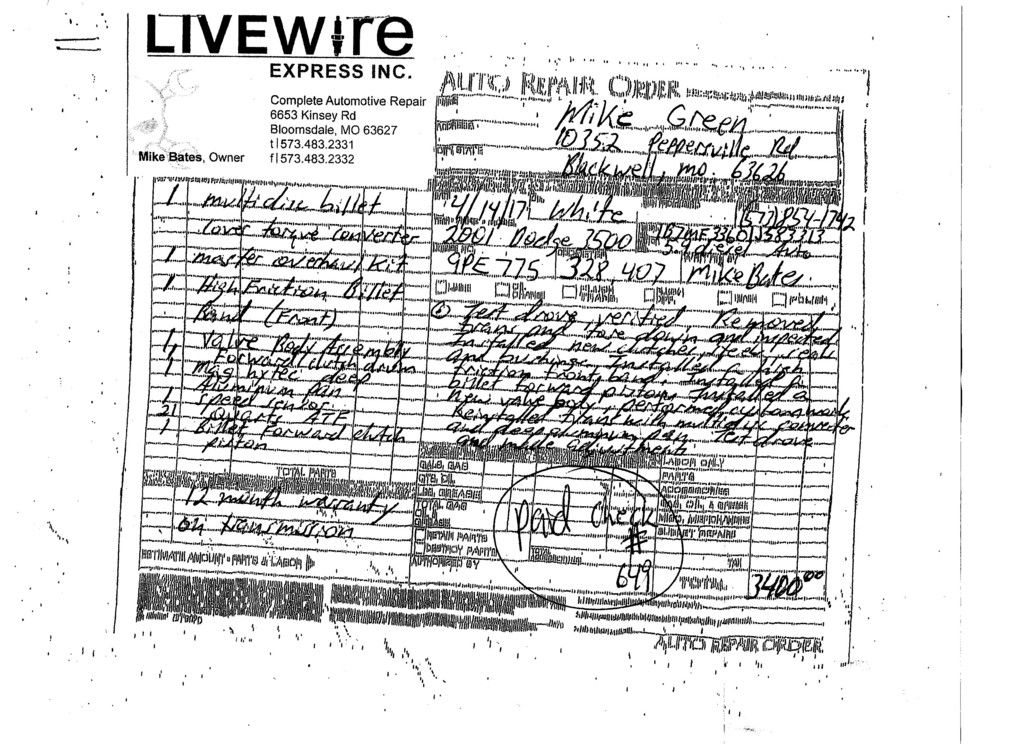

Had it rebuilt by a recommended shop. What do you guys think about the total bill?
__________________
'01, 3500, DRW, 4x4, QC, leather, 345,000mi, BHAF ,3.54, Dana80/60, 47RE auto, MWFI VP44 at 112k, FASS Titanium 150, Banks Power Elbow,
4"Monster exhaust, Ranch Hand Legend frt bumper, silencer ring MIA,Cooper AT3s, Timbo's APPS, Spohn Trackbar upgrade, HellBent Steel DSS, 50hp Maxtorq Injectors.
Mopar 52122362AH Steering upgrade
30' Damon Escaper 5'er 12,000#
Reply With Quote
  #10
Old 04-17-2017
MAXTORQ's Avatar
MAXTORQ MAXTORQ is offline
Administrator

Join Date: Jan 2004
Location: GOLDEN ,COLORADO
Posts: 19,636
Send a message via Yahoo to MAXTORQ Send a message via Skype™ to MAXTORQ
Default

Not bad. Mine would cost 4200 to 4800 depending on how you want it built. And the bill would a have been a bit more legible.
__________________


www.maxtorqdiesel.com
Reply With Quote
